[2773] High Gain Booster

Date: May 12th, 2021 | Comments : [6] | Categories: DIY.


6 Responses to “High Gain Booster”

[787339] admin Says: 1:03 am, May 13th, 2021

Sometimes… it is all in how you think about it. LOL

-Jack


[787342] admin Says: 7:03 pm, May 23rd, 2021

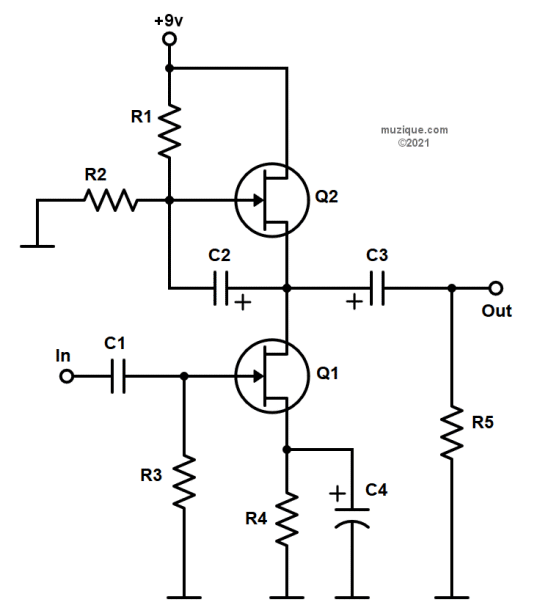

If you rearrange the parts in the drawing, it looks like this:

http://www.muzique.com/news/images/high-gain2.gif

We often get stuck thinking about circuits in specific ways, and when we see them drawn differently, they will appear unfamiliar.


[787399] harry Says: 4:50 am, January 6th, 2022

This is funny. I think Q2 provides both the biasing DC for Q1 and acts, via C2, as a source follower for low output impedance. I’m puzzled about the amplification factor, could that (ideally) be 1M/1k?


[787402] junk Says: 10:46 pm, January 23rd, 2022

i checked the link posted there by “admin.” i thought t he transistors in your schematic for this post were meant to be mosfets (n-channel type or whatever; BS170, 2N7000, etc) from the symbol used.

are these meant to just be JFETs (J113, 2N5457, MPF102, etc) like in the “ultra high gain high impedance amplifier” given in the other comment?

i would just give em both a whirl on the breadboard and see, but man i really kinda not so keen on blowing up more stuff right now if i can help it.

(actually i thoroughly enjoy blowing shit up, probably far past any healthy societal norms. but with the semiconductor issues afoot currently…)

and your site kicks ass and is one of the only reasons ive ever even began to be able to build pedals at all, so thank you forever, dude(s)….


[787403] admin Says: 8:44 am, January 24th, 2022

The transistors in both schematics are jfet, like the J201 or 2N5457. Both schematics are the same circuit, just redrawn.

regards, Jack


[787420] pinkjimiphoton Says: 3:09 pm, May 8th, 2022

gah!!
been doing this too long, bro, i see …. rearranged fuzzfaces…everywhere i look 😉
hope all is good JO
peace!
