AMZ Mosfet Booster

Assembled Module

© 1995-2016 Jack Orman

The AMZ Mosfet Booster is a high gain amplifier that serves very well as a booster for guitar signals. It is low noise and has a clean sound that is basically your original signal, only louder. Although it is a clean boost, the signal may be mildy distorted (in a pleasant way) if very large signals are sent to it and the gain is cranked. If this is not desired, a higher voltage supply up to 18v can be used for more clean headroom.

AMZ Mosfet Booster module


The Mosfet Booster

AMZ Mosfet Booster module The mosfet booster module wiring diagram is shown here. The potentiometer is connected to the 3 holes along the top edge of the pcb while the audio and power connections are along the bottom edge. All pads are labeled for reference.

If you need help with the off-board wiring, I have now added a drawing for basic stompbox wiring.

The mosfet booster module has a low impedance output that can drive longer cables, tone controls or following circuits easily. It also isolates the guitar pickups from the output loading, which will give more clean sound.

The LED output already has a current limiting resistor so all you have to do is run a wire to the LED and then to the footswitch for the bypass indicator.

The potentiometer is not included with the module purchase.


Frequency Response and Distortion

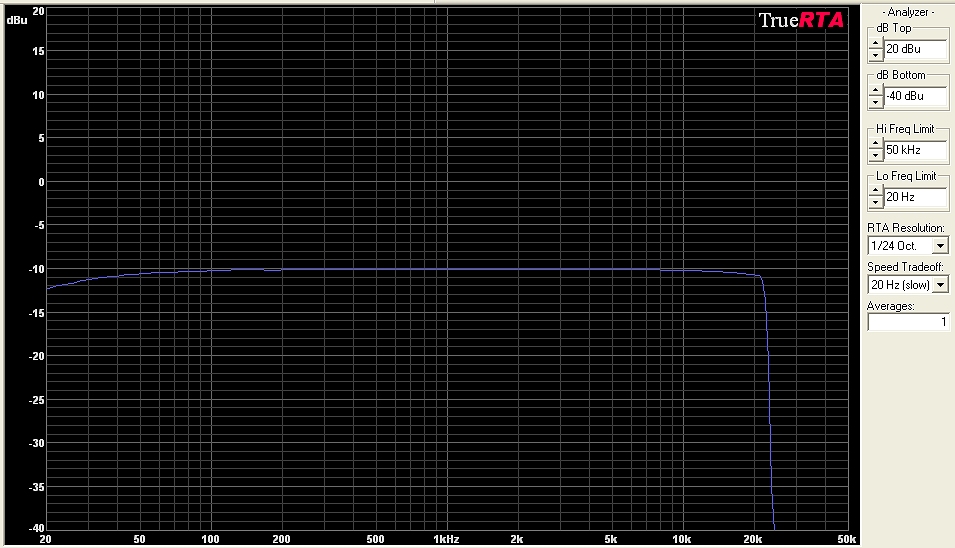

I measured the frequency response of the mosfet booster module and it is +/- 1dB from 35 Hz to 20,000 Hz. This easily covers the full range of both the guitar and bass spectrums.

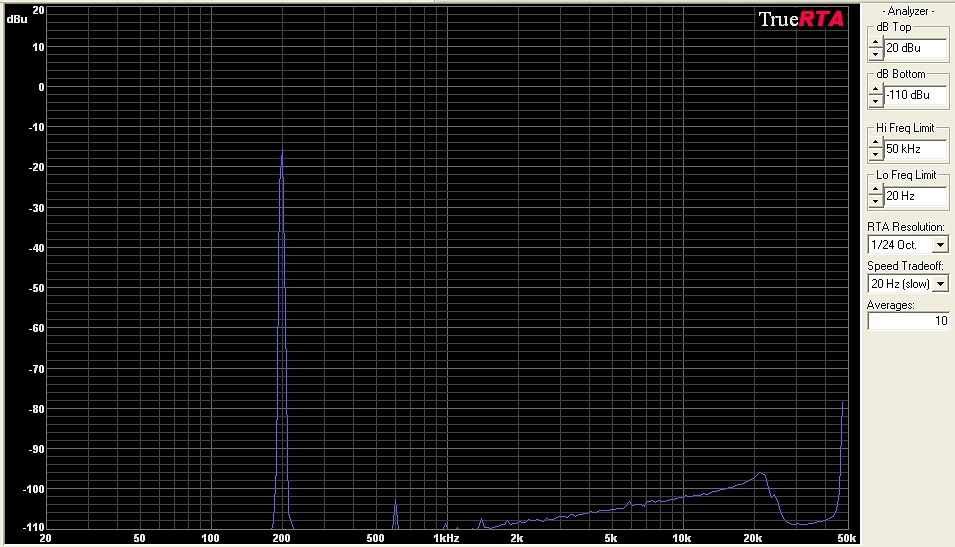

A look at the harmonics produced by the module shows that it is very clean. The only harmonic of any prominence is the third (at 600 Hz) and it is -87dB below the fundamental 200 Hz audio, which demonstrates that the module is very clean (low distortion). The measurements were made when powered by a 9v power supply.

Mosfet Frequency Response

Mosfet FFT


Order the Mosfet Booster module for $25 plus postage.

Complete instructions are provided with each order. Click here to purchase!

The modules are made in the USA with domestic and foreign parts.
