[1342] 3PDT Switch wiring

Date: September 18th, 2012 | Comments : [6] | Categories: DIY.

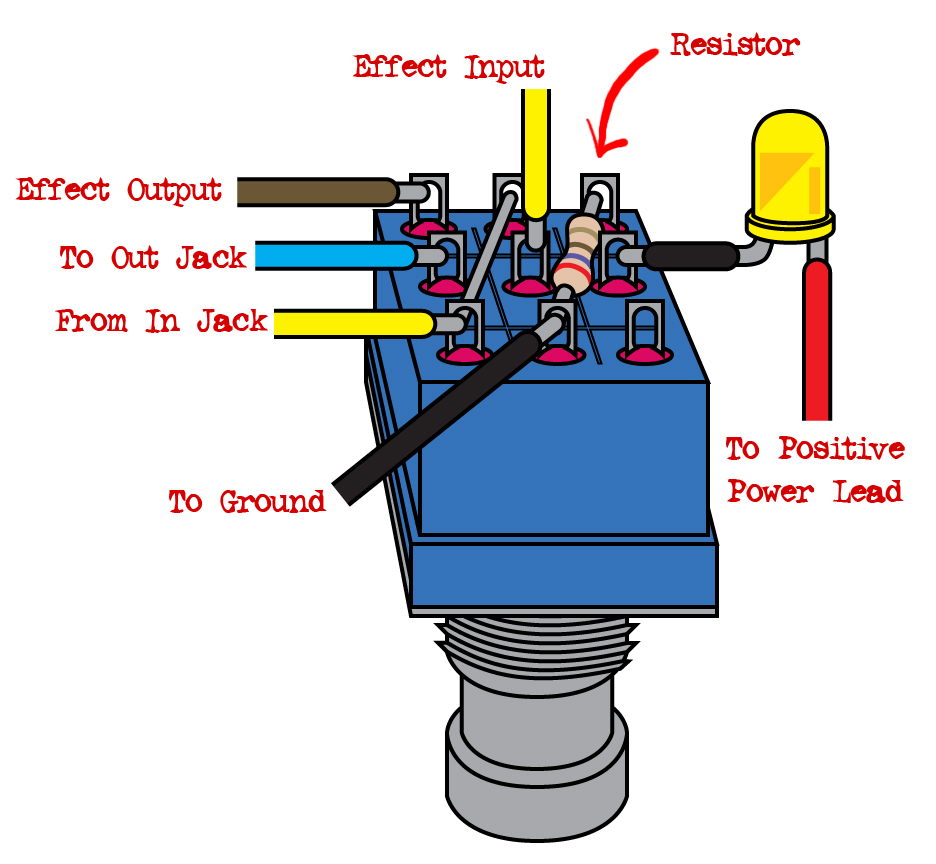

3PDT switch wiring diagram

One of the most common questions I get is about how to wire the bypass switch. The diagram above shows one common method that can be used.

Note that the rectangular lugs of the foot switch go side-to-side. If you rotate the switch so that the long dimension of the metal lugs are vertical, it will not work properly.

On some effects projects, the output to the switch may be from a volume pot and not directly from the pcb. The mini-booster is a project that has a volume control on its output and the middle lug of the volume pot would go to the lug marked “from PCB Output”.


6 Responses to “3PDT Switch wiring”

[3166] Ross Sewage Says: 7:15 pm, September 19th, 2012

If I may be so bold, I prefer a method I acquired from DIYstompboxes. It sends the input of the effect to ground, which was a great solution for some popping I was getting from a couple effects I’d added true bypass to. It provides a convenient home for the LED resistor to boot. I drew a diagram located here: http://3.bp.blogspot.com/-9H8-agz_5c0/TtL1n1tpVgI/AAAAAAAAAXg/PtdhlzmL-RI/s1600/3pdt swtitch distortion%2B.jpg

[3187] admin Says: 7:52 am, September 22nd, 2012

Grounding the pcb input on bypass is a good technique to know, but only really necessary with high gain circuits that are not 100% stable. My relay bypass pcb grounds the input since it may be used with a variety of circuits.

The input grounding method is shown in the second drawing at http://www.muzique.com/schem/dpdt.gif

regards, Jack

[3740] Adrian Says: 10:42 pm, January 28th, 2013

Hi there, I’m really confussed about how to wire the in – out and the 9v jack to the PCB and the 3PDT, I am making the Tonepad’s Ibanez CP9 compressor. I’d really apreciate some kind of help with it, thanks!

[3742] admin Says: 8:12 am, January 29th, 2013

Adrian, look at this image for wmore wiring info:


regards, Jack

[3888] Mike Says: 11:31 am, May 30th, 2013

I need how to wire the in, out and the 9v jack to the PCB and the 3PDT. I am building the amz fx boost pedal. Thanks!

[10768] Eli Says: 6:08 am, April 23rd, 2014

So would this wiring pcb work for true bypass loopers? Is it sufficient enough for that or should I be using a different wiring diagram?
